TVL100 Microcomputer Quantitative Water Supply Controller, compact digital quantitative controller with high precision and easy operation, quantitative range 1~999 liters, suitable for animal husbandry, food processing, solar energy, water tank filling and other scenarios.
TVL100 Microcomputer Quantitative Water Supply Controller
A compact digital quantitative controller with high precision and easy operation, suitable for animal husbandry, food processing, solar energy, water tank filling and other scenarios, with a quantitative range of 1~999 liters. Factory pre-calibrated, ready to use by simply connecting water and electricity circuits according to this manual.
Digital quantitative control with high precision and easy operation
Quantitative range of 1~999 liters, suitable for various application scenarios
Supports run/pause, jog, sensor calibration and other functions
Intuitive status indicator display, operation status at a glance
Factory pre-calibrated, ready to use after wiring
| |
 | |
 | |
 |
Interfaces: Run, Jog, Cancel, Power, Restart
External connections: Run/Pause switch, Jog switch (optional)

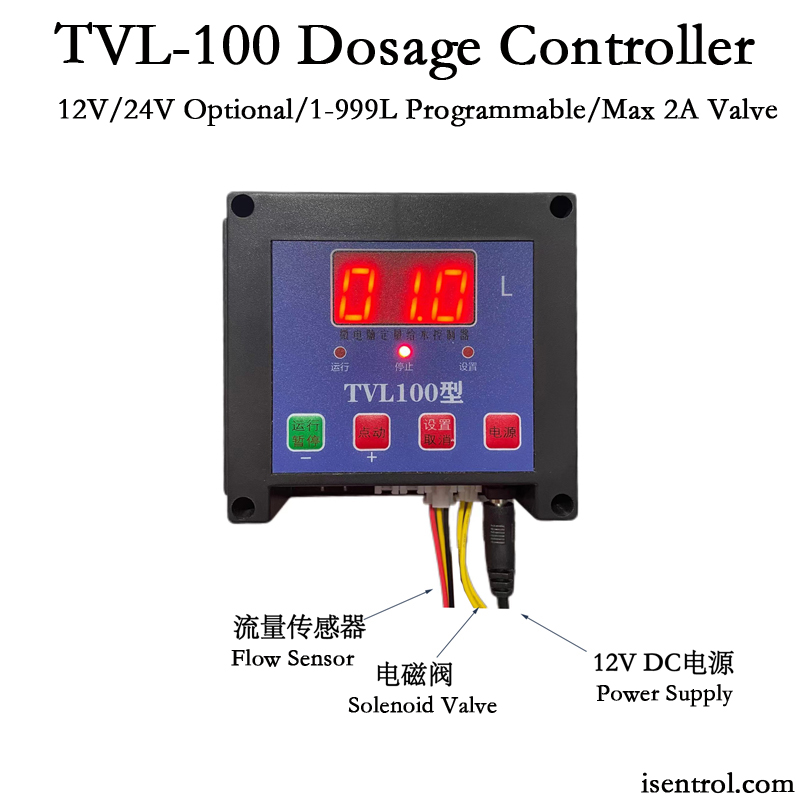

Wiring: Water flow sensor, solenoid valve (no polarity), 12V power adapter
The arrows on the sensor and solenoid valve must align with the water flow direction
Connection sequence: Water outlet → Water flow sensor → Internal thread connector → Solenoid valve
| Run/Pause | Start/stop water supply, functions as + key in setting mode |
|---|---|
| Jog | Jog water discharge, functions as - key in setting mode |
| Set/Cancel | Enter/exit settings, clear data |
| Power | Turn device on/off |
| Sensor Setting | Adjust sensor parameters |
| Restart | Restart device (for abnormal situations) |
| Stop light solid | Ready to run |
|---|---|
| Stop light flashing | Jog/paused |
| Run light on | Working |
| Set light solid | Quantitative setting |
| Set light flashing | Sensor setting |
Power on to enter ready state
Press and hold Set button for 2 seconds to enter settings
Press +/- to adjust value, press and hold for fast adjustment
Press and hold Set button for 2 seconds to save and exit
Run: Press Run button to automatically supply water, stops automatically when target is reached
Pause: Press Run button during operation to pause, press again to continue
Jog: Press and hold Jog button to discharge water, release to stop, press Cancel to clear after use
Press Sensor Setting button in ready state, adjust parameters (larger value = more water output), save and exit after setting is complete.
Fault 1: No water discharge when pressing Run → Check water supply, solenoid valve
Fault 2: Water stops after 1 second → Check water flow sensor
Press Restart button to restore normal operation after fixing
Animal husbandry, food processing, solar energy, water tank filling, smart sanitary equipment, water purifiers, water dispensers, water boilers, water vending machines, self-service vending machines, integrated water control machines, water controllers, IC card water meters, smart water meters, hot water meters,一卡通 management systems, campus card water vending systems, bathroom water control systems
 |
